Description

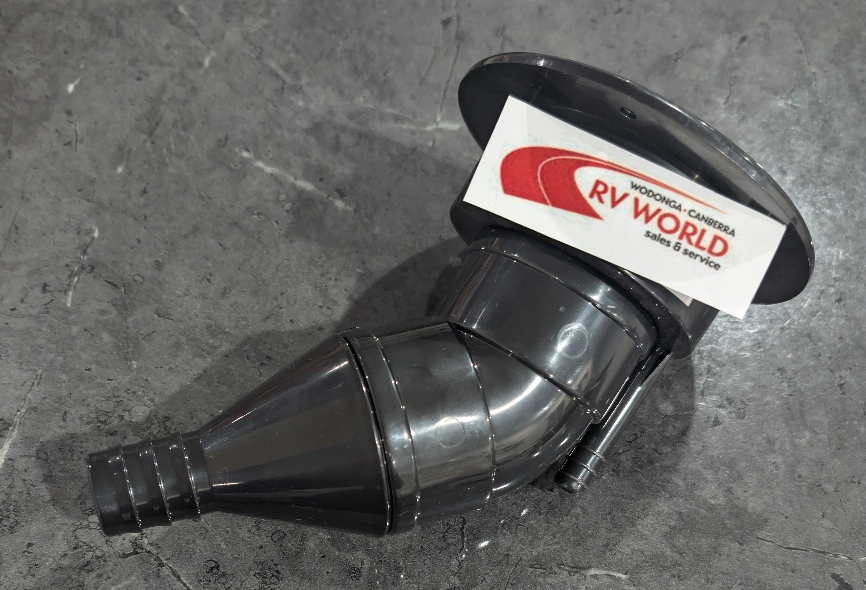

Lockable water filler. 230mm x 153mm, requires 83mm recess. Includes Clip-On fitting for connection to mains pressure system. One water tank filler is also included a space for second optional filler is built in. See 800-01092 if you need a second tank filler.
Features
Spare doors available -Part 800-01091
Door can be locked while hose is connected to van.
Rubber gasket include for easy installation.
Two Plastic keys (** Locked inside - see comments)
1 year warranty
Cut out side required 185mm x 110 with 8mm radius corners.
Overall dimensions 227mm x 150mm with 25mm radius corners.
Screw Holes 95mm apart #6.
Overall protrusion front to rear 100mm.
Protrusion from wall to front 12mm.
Opening flap (small) 65x55mm.
Mains pressure to 1/2 inch BSP
Tank filler to 25mm barb
Space for secondary tank filler
12mm breathers
Lockable water filler. 230mm x 153mm, requires 83mm recess. Includes Clip-On fitting for connection to mains pressure system. One water tank filler is also included a space for second optional filler is built in. See 800-01092 if you need a second tank filler.
Features
Spare doors available -Part 800-01091
Door can be locked while hose is connected to van.
Rubber gasket include for easy installation.
Two Plastic keys (** Locked inside - see comments)
1 year warranty
Cut out side required 185mm x 110 with 8mm radius corners.
Overall dimensions 227mm x 150mm with 25mm radius corners.
Screw Holes 95mm apart #6.
Overall protrusion front to rear 100mm.
Protrusion from wall to front 12mm.
Opening flap (small) 65x55mm.
Mains pressure to 1/2 inch BSP
Tank filler to 25mm barb
Space for secondary tank filler
12mm breathers
